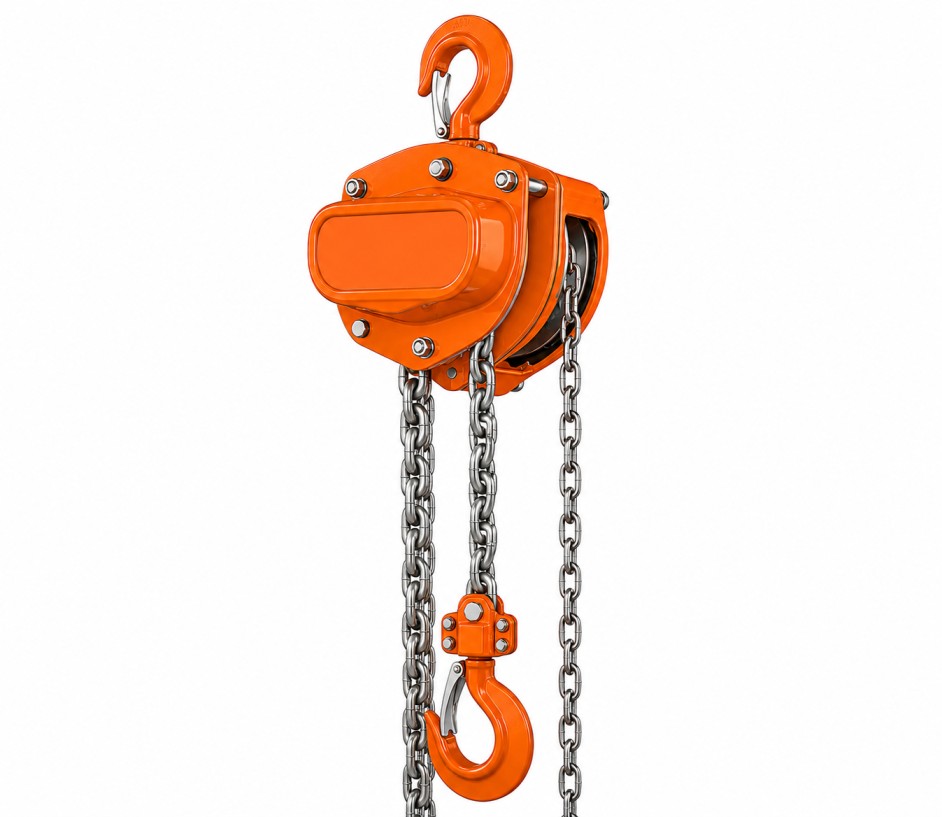

In industrial manufacturing and construction, the term "VT" or "VP" represents the standardized, heavy-duty industrial design pattern originally popularized by the Japanese engineering brand Vital.

Instead of using electricity, these hoists multiply human force using an internal spur gear efficiency system. Pulling a lightweight, continuous hand chain turns a small gear, which rotates a larger internal gear configuration to slowly pull a heavy-duty load chain through a pocket wheel.

Key Technical Advantages

• Zero Power Requirements: Because it is entirely mechanical, it is the absolute go-to choice for outdoor construction sites, remote infrastructure repair, or utility work where there is no access to an electrical grid.

• Double-Pawl Weston Brake System: These units feature a classic fail-safe brake assembly. The moment you stop pulling the hand chain, two independent mechanical pawls lock against a friction disk brake, ensuring the load stays perfectly suspended in mid-air without slipping.

• Exceptional Mechanical Advantage: The internal gearing is so efficient that an operator pulling with a modest force of roughly 300 to 400 Newtons (equivalent to lifting ~35 kg) can comfortably lift a full 2-ton to 3-ton industrial load.

Common Capacity & Sizing Breakdowns

The Vital-pattern architecture is built using premium Grade 80 (G80) structural steel load chains. Depending on your workshop needs, these hoists are configured by weight rating and lift height:

Light to Medium Lifters

Ideal for automotive garages pulling engines, farm maintenance bays, or small warehouse storage shelves.

• The Vital Chain Block (1 Ton, 6 Meter) utilizes a single strand of 6.3 mm load chain to deliver a massive 6-meter vertical lift range. Weighing only 13 kg itself, it is highly portable and easy to pack in a field service truck.
